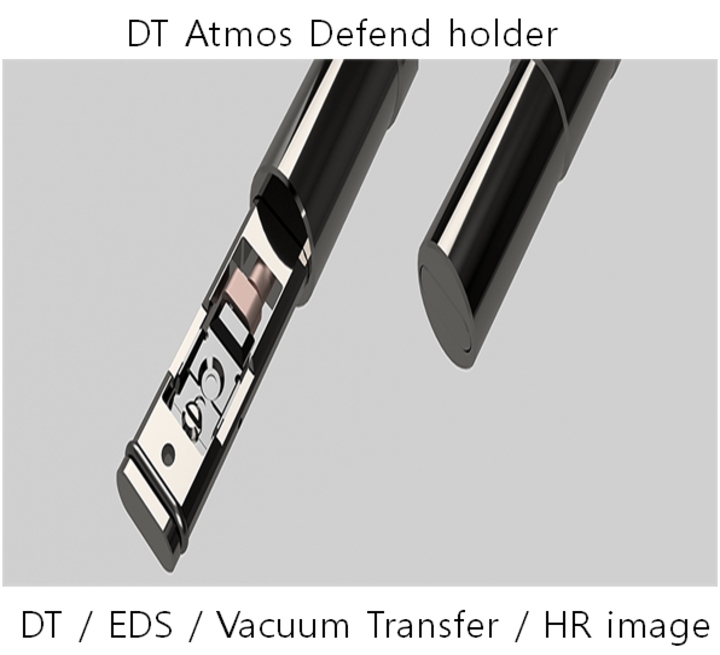

Double tilt Atmos Defend Holder

High efficiency EDS Analysis at FEI Quad SDD
Double tilt ±20＋Vacuum transfer
High resolution tilt control at 0.01degree step

EDS Analytical Model

Structure that does not obstruct detection
path of EDS as much as possible

Drift Cancel Structure

With our proprietary
drift cancellation mechanism,
Immediately after insert
high resolution like the image.

Vacuum retention capacity and blocking capacity indicated by data

It is proved that the vacuum arrival time is the same in the state where the Cradle is exposed
and the state where the atmosphere is stored and it is proved that the seal performance is
high because it leaks considerably when released to the atmosphere.

TEM holder Specification

Component	: Double-tilt and VacuumTransfer
X tilt	: ±25°
Y tilt / Min step	: ±20°/ 0.01°
Sample set	: Smart Set System
TEM	: Thermofisher JEOL PP type HR/FHP/UHR
Include item;   Temp. controller, Y tilt controller, Software, Safety Operation Stand of tem holder introduce.

Safety Operation Stand introduce
