제품설명

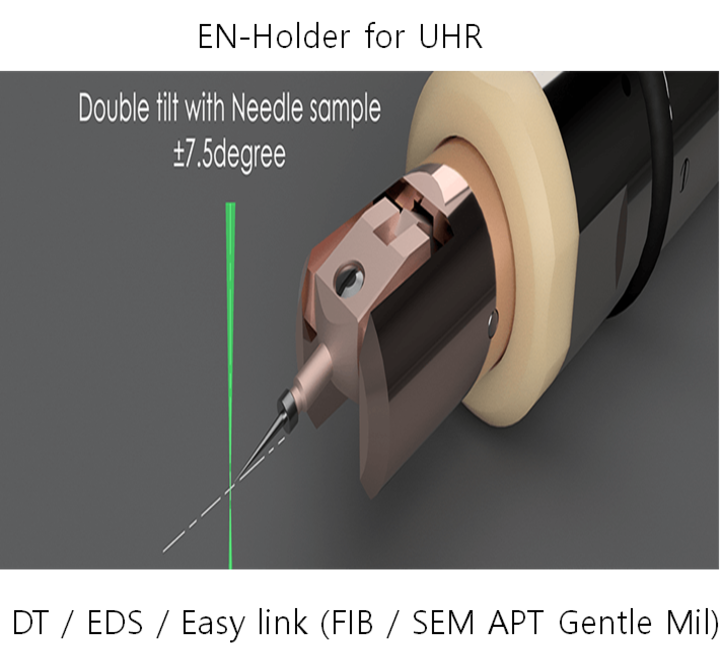

EN-Holder for UHR

EN-Holder for UHR

Double Tilt with Needle Sample
Keep to Eucentric position
Tomography is possible even with a narrow gap of UHR

It is necessary for realization of double tilt with a
needle specimen to instal our Virtual Pivot.

Virtual pivot mechanism has a linkage structure with
imaginary pivot as shown a schematic diagram,
which is feasible to double-tilt maintaining eucentric.

This mechanism is feasible to a double-tilt and
high-angle tilting of a needle specimen.

Example of sample preparation method with FIB by our STUB


1) Place the section cut out with the FIB on the needle.
2) Remove the STUB pin and fix it again to the position rotated 90 degrees.
3) Finish the sample section with FIB.

Easy link to other tools ( FIB/SEM APT Gentle Mil and More )

needle probe tomography tem holder
