In-situ Nano Order Tensile Holder
Nano-Order Tensile : min.step 1nm
Prepare 2 type holder of Polymer and Material model
Cartridge strcture: Easy link to Microtome and FIB

제품설명

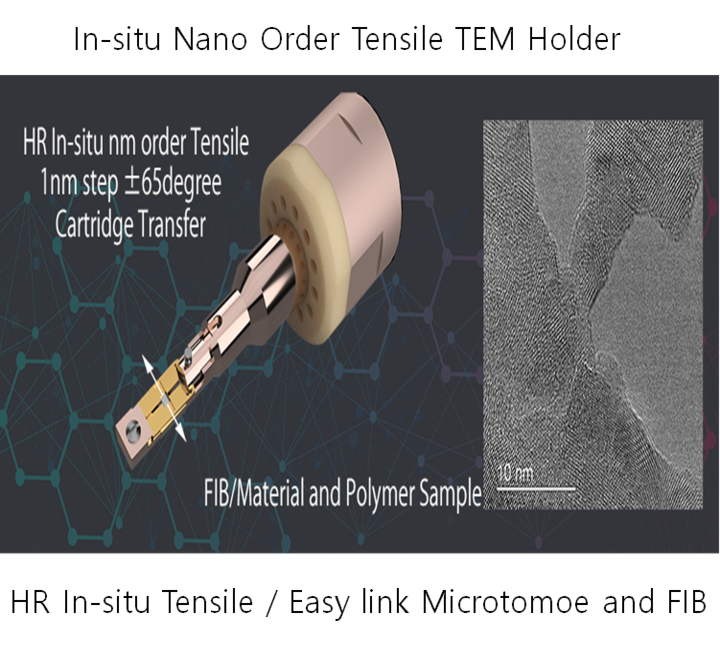

In-situ Nano Order Tensile TEM Holder

  • tensile tem holder

Nano-Order Tensile:min.step 1nm
Prepare 2 type holder of Polymer and material model
Cartridge structure:Easy link to Microtome and FIB

Polymer and materila Nano order Tensile data Collection

tensile tem holder

Cu-6Sn HR 5nm Tensile

tensile tem holder

Prof. M. Murayama (Virginia Tech)

tensile tem holder

Microscopy, 67, 296-300 (2018).
Prof. Jinnai Tohoku University

As shown in the video above, it is possible to perform a tensile test by dynamic observation.

Cartridge Structure

Material Model
Co-developer Prof.Kazuhisa Sato/Prof.Satoshi Hata

tensile tem holder

Standard design

tensile tem holder

Thin Slit design for FIB

tensile tem holder

Set the sample on the cartridge in various ways.
The cartridge design can be changed depending on the sample set method.
Then, the cartridge on which the sample is placed set on the tem holder, and the cartridge is tensile by deforming.

TEM holder Specification

  • tensile tem holder
Material Model
Tensile resolution1nm/step 3nm/dec
Tensile Distance200μm
tilt AngleTFS ±65°
JEOL HR PP ±60°/ UHR PP ±10°
Cartridge ModelPrepare FIB and Bulk sample
Soft Material Model
Tensile resolution1nm/step 3nm/dec
Tensile DistanceJEOL Model 800%
TFS 200%
tilt AngleJEOL HR PP ±20°/ UHR PP ±10°
TFS ±20°
Cyclic Straining ModeJEOL Available
TFS Not Function
Cartridge ModelPrepare Microtome and FIB
