Versatile Direct Detection Solution for Upgrading Your TEM

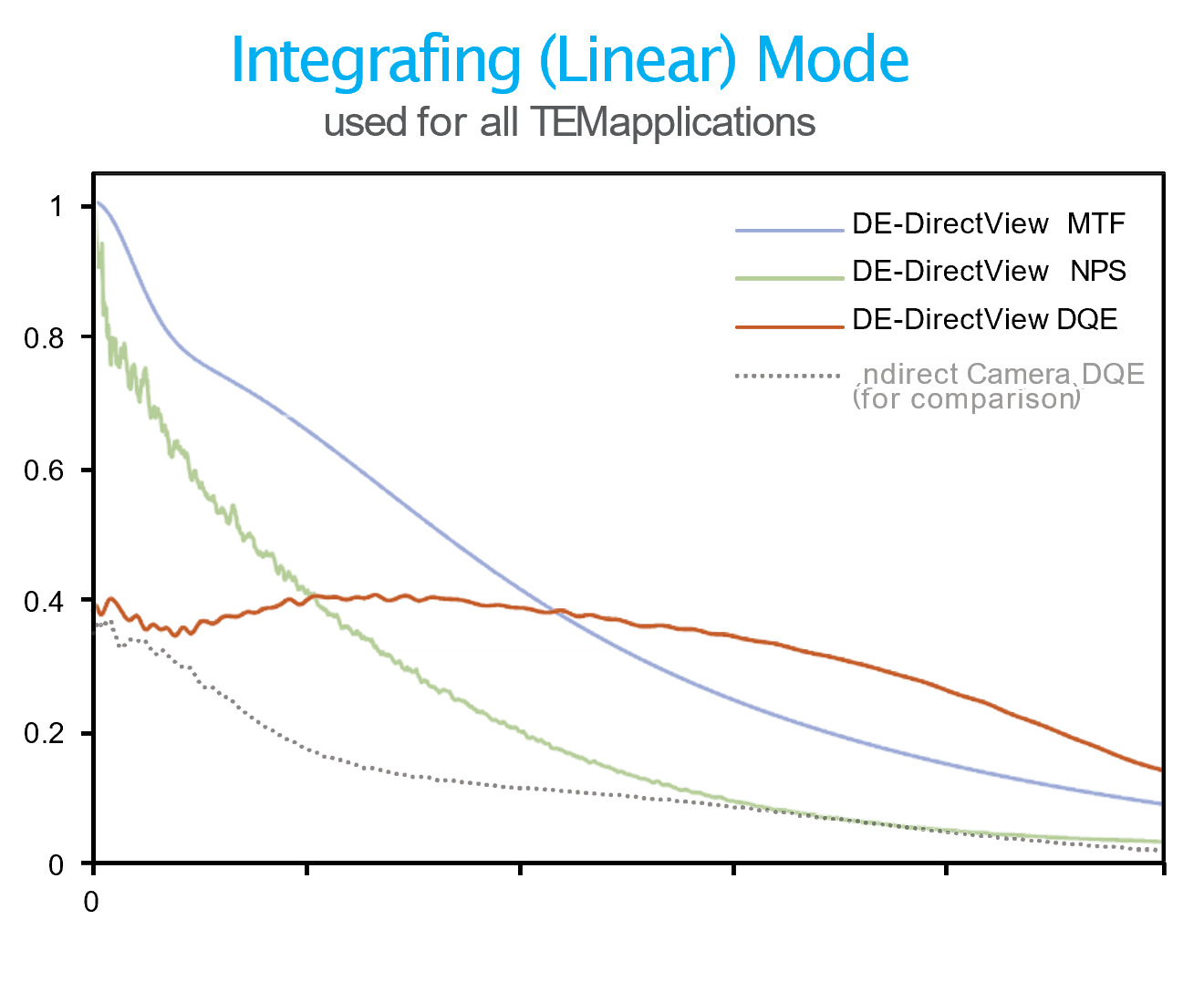

With high sensitivity and excellent resolution, the DirectView2 offers cost-effective direct detection for biological and material science applications. The DirectView2 features 4k × 4k pixels with a 6.5 μm pixel pitch optimized for excellent resolution (MTF) over a broad range of magnifications and exposure rates, an integrated Faraday plate, and full-frame unbinned streaming at up to 42 frames per second. Users can acquire data at up to 1000 fps by selecting a smaller readout area.

All of our DE-series cameras deliver state-of-the-art performance and unique features. They allow for direct detection of primary electrons—a revolutionary advancement in TEM data quality. The high signal-to-noise ratio (SNR) shows consistent performance across all spatial frequencies and TEM magnifications. Our patented “movie mode” system provides high-speed acquisition of a continuous stream of frames with nearly 100% duty cycle, so you don’t have to deal with dead time between frames.

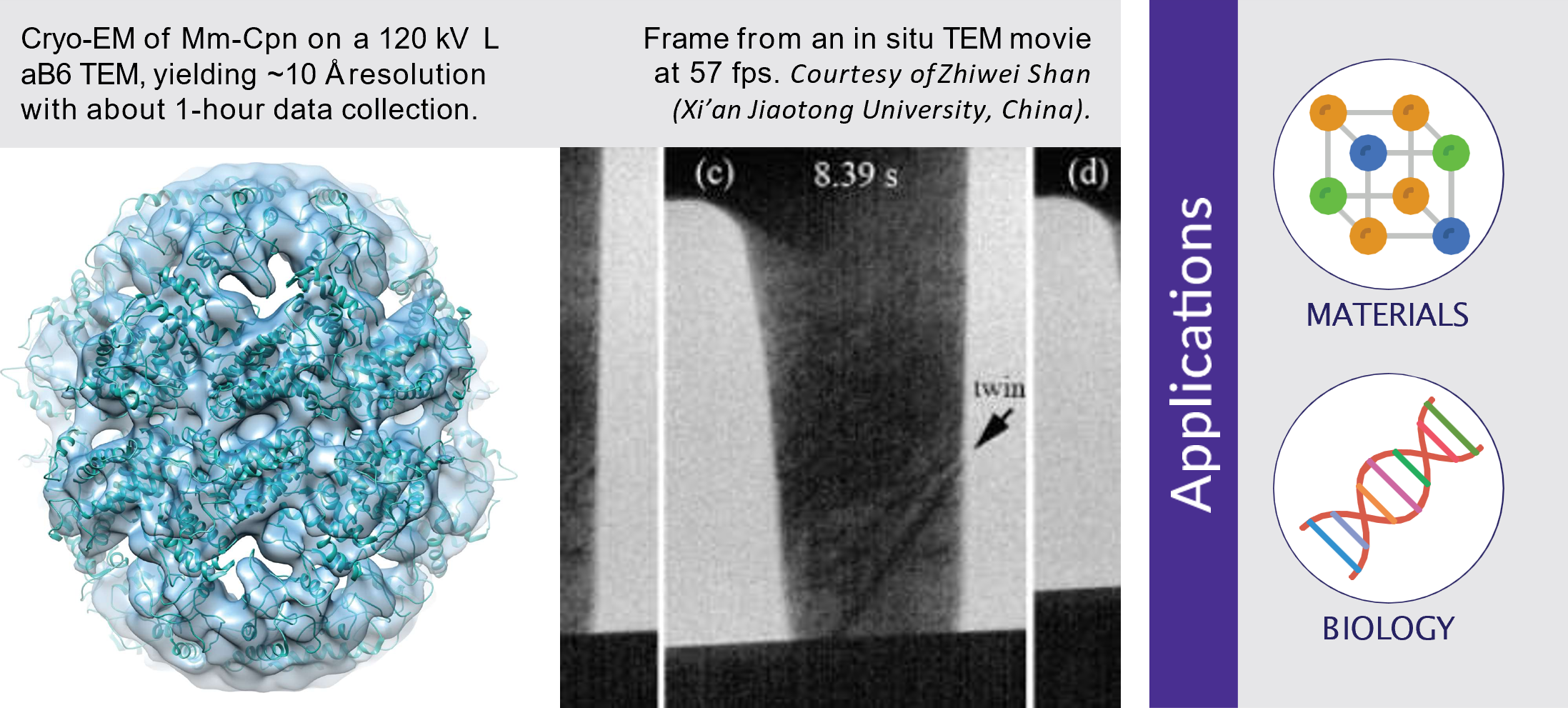

The sensitivity, versatility, and flexibility of the DirectView2 make it an ideal choice for microscopists seeking one camera that can support a wide range of TEM applications. Applications of the DirectView2 include in situ TEM, 4D STEM, and single-particle cryo-EM. The DirectView2 is the most reasonably priced option for adding a more powerful camera with new capabilities to an existing TEM.

key Features

● 4k × 4k field-of-view delivers 4× more pixels than a typical 2k × 2k camera

● Optional module to enable single electron counting with a SNR of ~50:1 (300 kV)

●  Fully retractable mounting on-axis TEM bottom port or in JEOL film chamber

● High-speed continuous streaming of raw frames, with flexible frame rate and exposure time

● Integrated Faraday plate for automatic exposure measurement

● Consistent performance at a broad range of exposure rates (e.g., 5 − 250 e-/pixel/s)

● Class-leading dynamic range, making it effective for a wide variety of applications

● Optimized for 120 keV − 200 keV detection electron energy range

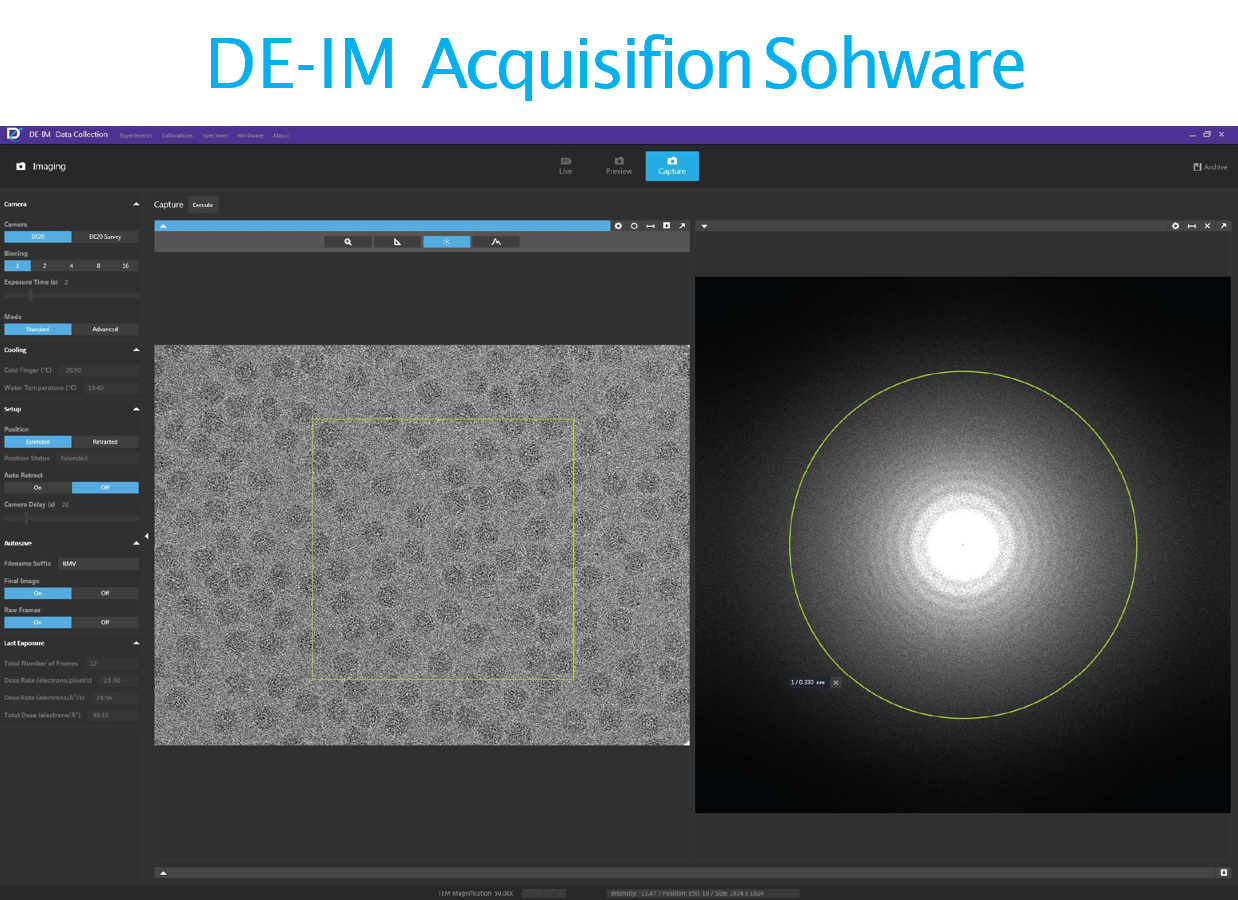

● Open software architecture is fully extensible and easily integrated into custom workflows.
