Direct Electron
DE-64
Revolutionary Imaging
on an 8K x 8K Field of View
on an 8K x 8K Field of View
제품설명
REVOLUTIONARY IMAGING
ON AN 8K X 8K FIELD-OF-VIEW
The DE-64 is the world’s first and only true 8k × 8k direct detector with the widest field of view of any direct detector. Ideal for cryo-EM of very large viruses or cellular tomography, the DE-64 delivers user-adjustable full-frame streaming at up to 46 frames per second,
and offers unparalleled performance for electron counting. With nearly 4x more particles in a single image, the expansive 67.1 megapixel field-of-view dramatically decreases the number of images needed for each single particle experiment
and improves 3D reconstructions by significantly improving CTF fitting. The DE-64 has 6.5 μm pixels optimized for superior resolution (MTF) over a broad range of magnifications and exposure rates, and it includes an integrated Faraday plate.
The innovative movie-mode processing software enhances data quality through drift correction, per-particle motion correction, radiation damage compensation, and post-acquisition exposure setting. It allows for direct detection of primary electrons,
a truly revolutionary advancement in TEM data quality. If needed, enable the optional module for single electron counting, which has a ~50:1 (300 kV) signal-to-noise ratio. The clarity and speed of the DE-64 offers the ultimate
in high-performance imaging for the most demanding projects and highest-level research.
key Features

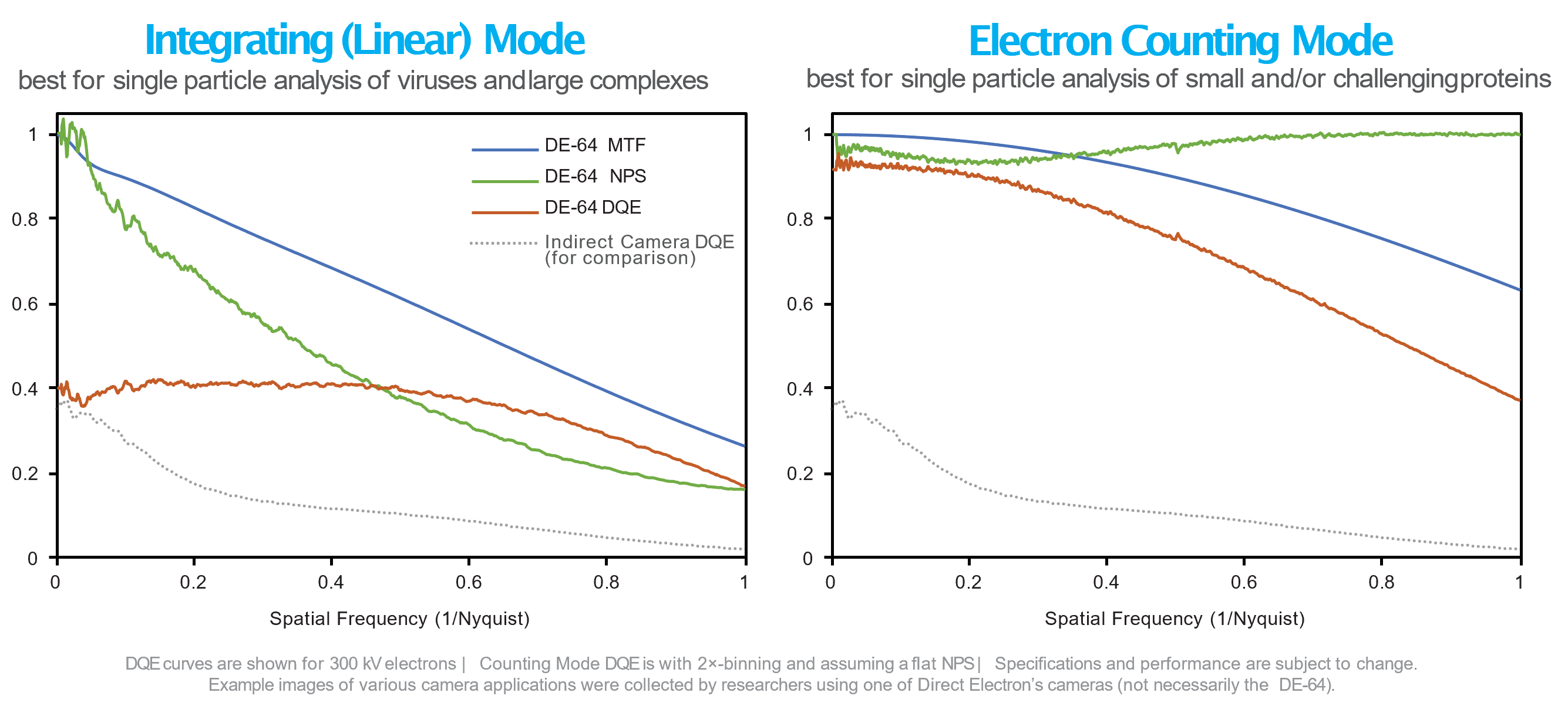

● Excellent MTF and DQE performance

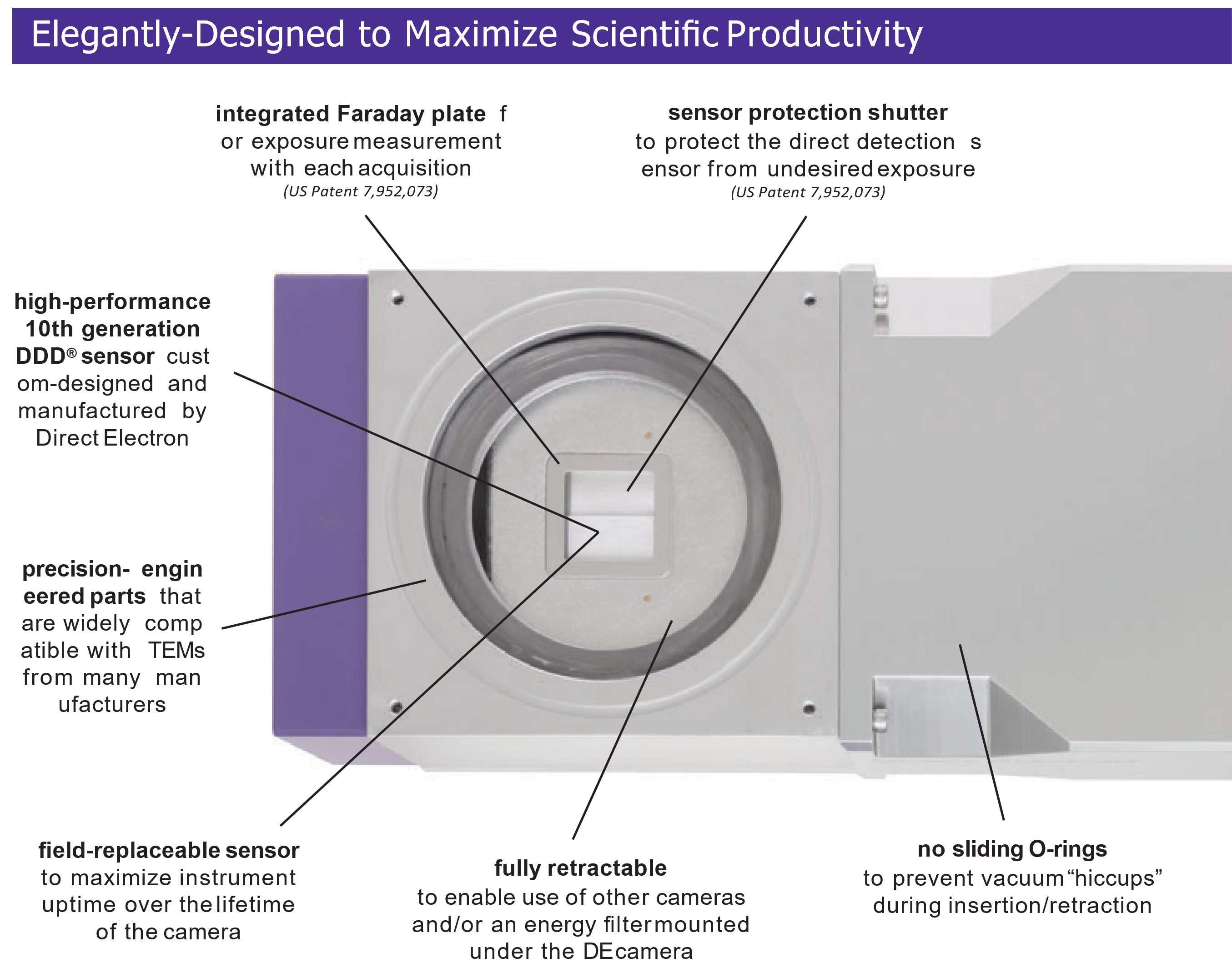

● Integrated Faraday plate for automated exposure measurement calculation

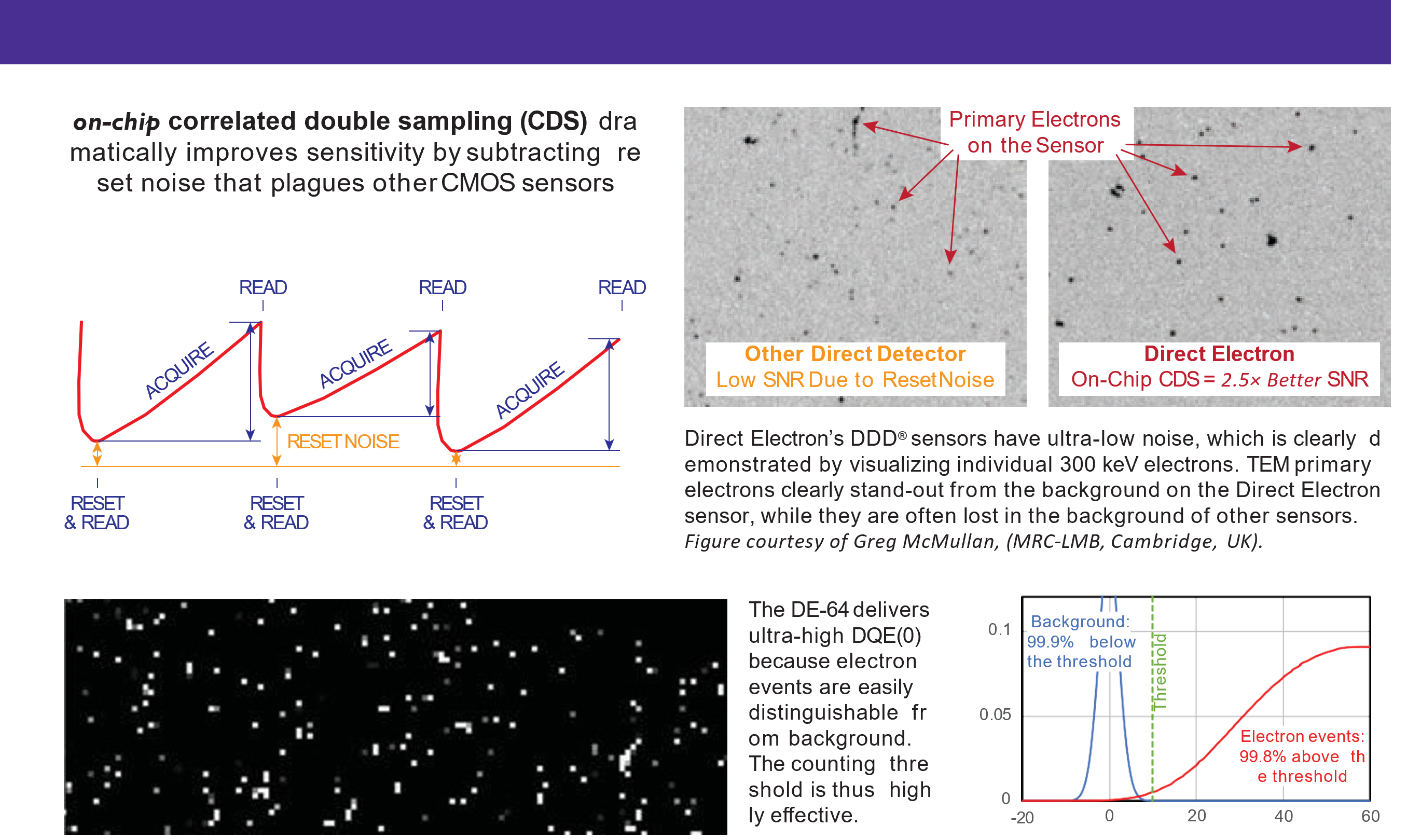

● Optional module to enable single electron counting
● Enormous 8k × 8k field of view delivers 4 times more data with each exposure than a 4k × 4k camera
● Fully retractable mounting on-axis TEM bottom port or in JEOL film drawer
● Complete access to raw data in all known industry-standard file formats
● High-speed continuous streaming of raw frames, with flexible frame rate and exposure time
● Open software architecture is fully extensible and easily integrated into custom workflows
● 46 fps max unbinned full-frame continuous frame rate
